kome::objects::OverlappingSpectrum Class Reference

dummy spectrum class for overlapping draw More...

#include <OverlappingSpectrum.h>

Inheritance diagram for kome::objects::OverlappingSpectrum:
Inheritance graph
[legend]

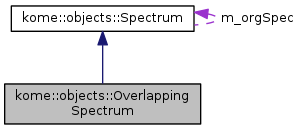

Collaboration diagram for kome::objects::OverlappingSpectrum:
Collaboration graph
[legend]

Public Member Functions

 OverlappingSpectrum ()
 constructor

virtual ~OverlappingSpectrum ()
 destructor

void addSpectrum (Spectrum *spec)
 adds spectrum More...

void clearSpectra ()
 clears spectra

void removeSpectrum (Spectrum *spec)
 removes spectrum More...

- Public Member Functions inherited from kome::objects::Spectrum
 Spectrum (Sample *sample, const char *name)
 constructor More...

virtual ~Spectrum ()
 destructor

void setId (int id)
 sets spectrum id More...

int getId ()
 gets spectrum id More...

void setOperationFlag (const bool op)
 sets the operation flag value More...

bool getOperationFlag ()
 gets the operation flag value More...

Sample * getSample ()
 gets the sample that has this spectrum More...

void setName (const char *name)
 sets spectrum name More...

const char * getName ()
 gets spectrum name More...

void setRt (const double rt)
 sets retention time More...

void setRt (const double startRt, const double endRt)
 gets retention time More...

void setStartRt (const double rt)
 sets start retention time More...

void setEndRt (const double rt)
 sets end retention time More...

double getRt ()
 gets retention time More...

double getStartRt ()
 gets the start of retention time More...

double getEndRt ()
 gets the end of retention time More...

void setSpecType (const char *type)
 sets spectrum type More...

const char * getSpecType ()
 gets spectrum type More...

void setTitle (const char *title)
 sets spectrum title More...

const char * getTitle ()
 gets spectrum title More...

void setIcon (const char *icon)
 sets icon name More...

const char * getIcon ()
 gets icon name More...

kome::core::XYData * getXYData ()
 gets xy data from data manager More...

void deleteXYData ()
 deletes xy data of data manager

void getXYData (kome::core::XYData *const xyData, const bool op)
 gets data points More...

void getXYData (kome::core::XYData *const xyData, const double minX, const double maxX, const bool zero)
 gets data points that spectrum has More...

void setXRange (const double minX, const double maxX)
 sets x range More...

void setMinX (const double minX)
 sets min x More...

double getMinX ()
 gets min x More...

void setMaxX (const double maxX)
 sets max x More...

double getMaxX ()
 gets max x More...

void setTotalIntensity (const double intensity)
 sets total intensity of spectrum More...

double getTotalIntensity (const double minX=-1.0, const double maxX=-1.0)
 gets total intensity in specified range More...

void setMaxIntensity (const double intensity)
 sets max intensity of spectrum More...

double getMaxIntensity (const double minX=-1.0, const double maxX=-1.0)
 gets max intensity in specified range More...

void setBasePeakMass (const double mass)
 sets base peak mass More...

double getBasePeakMass ()
 gets base peak mass More...

void setMsStage (const int stage)
 sets ms stage More...

int getMsStage ()
 gets ms stage More...

void setPrecursor (const int stage, const double precursor)
 sets precursor More...

void setPrecursor (const double precursor)
 sets precursor More...

double getPrecursor (const int stage)
 gets precursor More...

double getPrecursor ()
 gets the precursor mass of precursor ion spectrum. More...

void setPrecursorIntensity (const int stage, const double intensity)
 sets precursor intensity More...

void setPrecursorIntensity (const double intensity)
 sets precursor intensity More...

double getPrecursorIntensity (const int stage)
 gets the precursor intensity More...

double getPrecursorIntensity ()
 gets the precursor intensity of the precursor ion spectrum. More...

void setPrecursorCharge (const int charge)
 sets the precursor charge More...

int getPrecursorCharge ()
 gets the precursor charge More...

void setParentSpectrum (Spectrum *const parent)
 sets parent spectrum More...

Spectrum * getParentSpectrum ()
 gets parent spectrum More...

void getChildSpectra (std::vector< Spectrum * > &children)
 gets child spectra More...

void setHasChromatogram (const bool chromatogram)
 sets wheher this spectrum has chromatogram More...

bool hasChromatogram ()
 judges whether this spectrum has chromatogram More...

void setGroup (DataGroupNode *group)
 sets spectrum group More...

DataGroupNode * getGroup ()
 gets spectrum group More...

void setScanNumber (const int scan)
 sets scan number More...

int getScanNumber ()
 gets scan number More...

void setPolarity (Polarity polarity)
 sets polarity More...

Polarity getPolarity ()
 gets polarity More...

void setCentroidMode (const bool centroidMode)
 sets centroid mode or not More...

bool isCentroidMode ()
 judget wheter this spectrum is centroid mode More...

void setResolution (const double resolution)
 sets resolution More...

double getResolution ()
 gets resolution More...

void setCollisionEnergy (const char *collisionEnergy)
 sets the collision energy More...

const char * getCollisionEnergy ()
 gets the collision energy More...

void setVisible (const bool visible)
 sets the visible flag More...

bool isVisible ()
 gets the visible flag value More...

void setAutoZeroPoints (const bool autoZero)
 sets auto zero points flag value More...

bool isAutoZeroPoints ()
 gets auto zero points flag value More...

kome::core::Properties & getProperties ()
 gets properties More...

kome::core::Properties & getUserProperties ()
 gets user properties More...

void setOrgSpectrum (Spectrum *spec)
 sets original spectrum More...

Spectrum * getOrgSpectrum ()
 gets original spectrum More...

void getProperties (kome::core::Properties &properties)
 gets spectrum and spectrum group properties More...

void getUserProperties (kome::core::Properties &userProperties)
 gets spectrum and spectrum group user properties More...

void setSpotId (const char *pcSpotId)
 set spot id param[in] pcSpotId SpotId information

const char * getSpotId (void)
 get spot id More...

void setRequestLoadData (void)
 set the flag of request load data More...

void resetRequestLoadData (void)

bool isRequestLoadData (void)
 check the flag of request load data More...

void setFirstAccess (void)
 set the flag of first access

void resetFirstAccess (void)
 reset the flag of first access

bool isFirstAccess (void)
 check the flag of first access More...

bool loadData (void)
 load data More...


Protected Member Functions

int searchSpectrum (Spectrum *spec)
 searches spectrum More...

virtual void onGetXYData (kome::core::XYData *const xyData, const double minX, const double maxX)
 This method is called by getXYData method. (override method) More...

virtual void onGetXRange (double *minX, double *maxX)
 This method is called by getMinX or getMaxX method. (override method) More...

virtual double onGetTotalIntensity (const double minX, const double maxX)
 This method is called by getTotalIntensity method. (override method) More...

virtual double onGetMaxIntensity (const double minX, const double maxX)
 This method is called by getMaxIntensity method. (override method) More...

- Protected Member Functions inherited from kome::objects::Spectrum
virtual void onSetRequestLoadData (void)
 This method is called by setRequestLoadData method. (abstract method)

virtual void onResetRequestLoadData (void)
 This method is called by resetRequestLoadData method. (abstract method)

virtual bool onIsRequestLoadData (void)
 This method is called by isRequestLoadData method. (abstract method) More...

virtual void onSetFirstAccess (void)
 This method is called by setFirstAccess method. (abstract method)

virtual void onResetFirstAccess (void)
 This method is called by resetFirstAccess method. (abstract method)

virtual bool onIsFirstAccess (void)
 This method is called by isFirstAccess method. (abstract method) More...

virtual bool onLoadData (void)
 This method is called by loadData method. (abstract method) More...

bool firstAccessProcess (void)
 method for processing when accessing the first item of this class More...


Protected Attributes

std::vector< Spectrum * > m_spectra

std::vector< double > m_dMinX

std::vector< double > m_dMaxX

std::vector< double > m_dMinY

std::vector< double > m_dMaxY

bool * m_bFlags

double * m_dInts

int m_nAllocLen

- Protected Attributes inherited from kome::objects::Spectrum
Spectrum * m_orgSpec

bool m_op

int m_specId


Additional Inherited Members

- Public Types inherited from kome::objects::Spectrum
enum  Polarity { POLARITY_UNKNOWN = 0, POLARITY_POSITIVE = 1, POLARITY_NEGATIVE = 2 }
 polarity definition

- Static Public Member Functions inherited from kome::objects::Spectrum
static bool isCommonProperty (const char *key)
 check whther the specified property key is common property or not More...

- Static Protected Attributes inherited from kome::objects::Spectrum
static std::vector< std::string > m_commonProps


Detailed Description

dummy spectrum class for overlapping draw

Definition at line 26 of file OverlappingSpectrum.h.

Member Function Documentation

void kome::objects::OverlappingSpectrum::addSpectrum ( Spectrum *  spec)

adds spectrum

Parameters
[in]specspectrum object to be added

Definition at line 63 of file OverlappingSpectrum.cpp.

63  {
64  // check the spectrum
65  if( spec == NULL || searchSpectrum( spec ) >= 0 ) {
66  return;
67  }
68
69  // add
70  m_spectra.push_back( spec );
71
72  // set group
73  if( m_spectra.size() == 1 ) {
74  setGroup( m_spectra[ 0 ]->getGroup() );
75  }
76  else {
77  setGroup( NULL );
78  }
79
80  // update range
81  double minX = double();
82  double maxX = double();
83
84  onGetXRange( &minX, &maxX );
85  setXRange( minX, maxX );
86 }
kome::objects::OverlappingSpectrum::onGetXRange
virtual void onGetXRange(double *minX, double *maxX)
This method is called by getMinX or getMaxX method. (override method)
Definition: OverlappingSpectrum.cpp:325
NULL
#define NULL
Definition: CoreMacros.h:18
kome::objects::Spectrum::getGroup
DataGroupNode * getGroup()
gets spectrum group
Definition: Spectrum.cpp:898
kome::objects::OverlappingSpectrum::m_spectra
std::vector< Spectrum * > m_spectra
Definition: OverlappingSpectrum.h:42
kome::objects::OverlappingSpectrum::searchSpectrum
int searchSpectrum(Spectrum *spec)
searches spectrum
Definition: OverlappingSpectrum.cpp:145
kome::objects::Spectrum::setGroup
void setGroup(DataGroupNode *group)
sets spectrum group
Definition: Spectrum.cpp:893
kome::objects::Spectrum::setXRange
void setXRange(const double minX, const double maxX)
sets x range
Definition: Spectrum.cpp:443

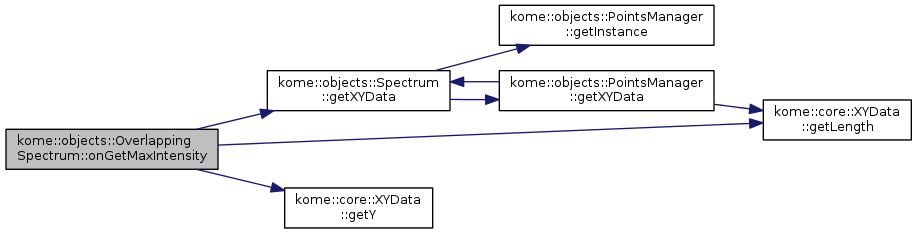

Here is the call graph for this function:

double kome::objects::OverlappingSpectrum::onGetMaxIntensity ( const double  minX,
const double  maxX
)
protectedvirtual

This method is called by getMaxIntensity method. (override method)

Parameters
[in]minXminimum x of range (If minX is negative number, minimum x value is unbounded.)
[in]maxXmaximum x of range (If maxX is negative number, maximum x value is unbounded.)
Returns
max intensity

Implements kome::objects::Spectrum.

Definition at line 366 of file OverlappingSpectrum.cpp.

366  {
367  // get data points
368  kome::core::DataPoints dps;
369  getXYData( &dps, -1.0, -1.0, false );
370
371  // get total intensity
372  double intensity = 0.0;
373  for( unsigned int i = 0; i < dps.getLength(); i++ ) {
374  intensity += std::max( dps.getY( i ), intensity );
375  }
376
377  return intensity;
378 }
kome::core::DataPoints
data points data of profile management class
Definition: DataPoints.h:25
kome::core::XYData::getY
double getY(const unsigned int index)
gets y coordinate
Definition: XYData.cpp:243
kome::objects::Spectrum::getXYData
kome::core::XYData * getXYData()
gets xy data from data manager
Definition: Spectrum.cpp:279
kome::core::XYData::getLength
unsigned int getLength()
gets the number of points @return the number of points
Definition: XYData.cpp:216

Here is the call graph for this function:

double kome::objects::OverlappingSpectrum::onGetTotalIntensity ( const double  minX,
const double  maxX
)
protectedvirtual

This method is called by getTotalIntensity method. (override method)

Parameters
[in]minXminimum x of range (If minX is negative number, minimum x value is unbounded.)
[in]maxXmaximum x of range (If maxX is negative number, maximum x value is unbounded.)
Returns
total intensity

Implements kome::objects::Spectrum.

Definition at line 351 of file OverlappingSpectrum.cpp.

351  {
352  // get data points
353  kome::core::DataPoints dps;
354  getXYData( &dps, -1.0, -1.0, false );
355
356  // get total intensity
357  double intensity = 0.0;
358  for( unsigned int i = 0; i < dps.getLength(); i++ ) {
359  intensity += dps.getY( i );
360  }
361
362  return intensity;
363 }
kome::core::DataPoints
data points data of profile management class
Definition: DataPoints.h:25
kome::core::XYData::getY
double getY(const unsigned int index)
gets y coordinate
Definition: XYData.cpp:243
kome::objects::Spectrum::getXYData
kome::core::XYData * getXYData()
gets xy data from data manager
Definition: Spectrum.cpp:279
kome::core::XYData::getLength
unsigned int getLength()
gets the number of points @return the number of points
Definition: XYData.cpp:216

Here is the call graph for this function:

void kome::objects::OverlappingSpectrum::onGetXRange ( double *  minX,
double *  maxX
)
protectedvirtual

This method is called by getMinX or getMaxX method. (override method)

Parameters
[out]minXthe pointer to store minimum x value
[out]maxXthe pointer to store maximum x value

Implements kome::objects::Spectrum.

Definition at line 325 of file OverlappingSpectrum.cpp.

325  {
326  double minXX = -1.0;
327  double maxXX = -1.0;
328
329  // get x range
330  for( unsigned int i = 0; i < m_spectra.size(); i++ ) {
331  // spectrum
332  Spectrum* spec = m_spectra[ i ];
333
334  double tmpMinX = spec->getMinX();
335  double tmpMaxX = spec->getMaxX();
336
337  if( minXX < 0.0 || tmpMinX < minXX ) {
338  minXX = tmpMinX;
339  }
340  if( maxXX < 0.0 || tmpMaxX > maxXX ) {
341  maxXX = tmpMaxX;
342  }
343  }
344
345  // store
346  *minX = minXX;
347  *maxX = maxXX;
348 }
kome::objects::Spectrum::getMinX
double getMinX()
gets min x
Definition: Spectrum.cpp:461
kome::objects::Spectrum::getMaxX
double getMaxX()
gets max x
Definition: Spectrum.cpp:489
kome::objects::OverlappingSpectrum::m_spectra
std::vector< Spectrum * > m_spectra
Definition: OverlappingSpectrum.h:42
kome::objects::Spectrum
spectrum information management class
Definition: Spectrum.h:30

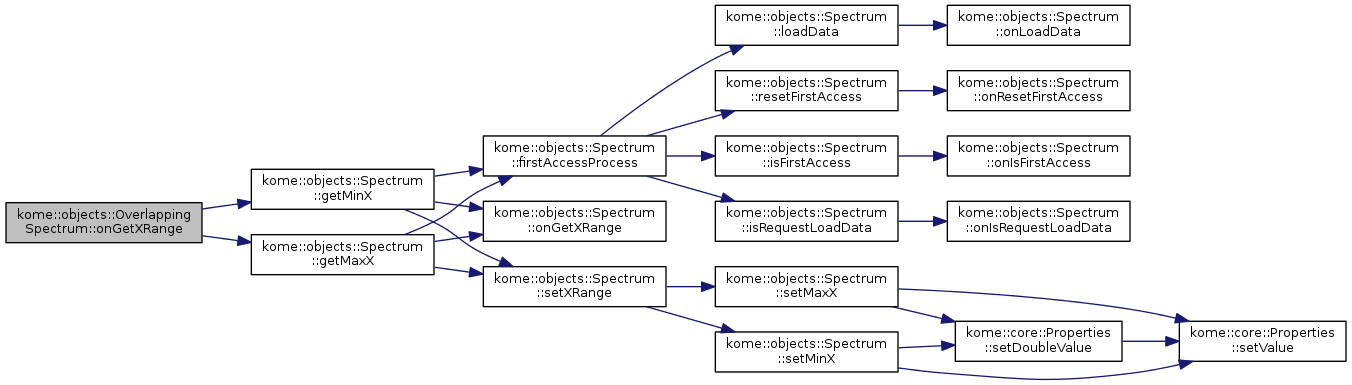

Here is the call graph for this function:

void kome::objects::OverlappingSpectrum::onGetXYData ( kome::core::XYData *const  xyData,
const double  minX,
const double  maxX
)
protectedvirtual

This method is called by getXYData method. (override method)

Parameters
[out]xyDatathe object to store data points
[in]minXminimum x value. (If minX is negative number, minimum x value is not unbounded.)
[in]maxXmaximum x value. (If maxX is negative number, maximum x value is not unbounded.)

Implements kome::objects::Spectrum.

Definition at line 156 of file OverlappingSpectrum.cpp.

160  {
161  // check the member
162  if( m_spectra.size() == 0 ) {
163  return;
164  }
165
166  // min, max
167  double minMz = 0.0;
168  double maxMz = 0.0;
169
170  double minInt = 0.0;
171  double maxInt = 0.0;
172
173  // 登録されているspectrumのなかで、最大・最小をを求めます
174  //
175
176  // 新規に登録されたspectrumの最大最小値をスタックして、
177  // スタックされている情報から最大最小値を求めます
178  // ※spectrum内の最大最小値を求める時間が省けます
179  //
180  if ( m_spectra.size( ) > m_dMinX.size( ) )
181  {
182  kome::objects::Spectrum* spec = m_spectra[ m_spectra.size( ) - 1 ];
183  // get data points
184  kome::core::DataPoints dps;
185  spec->getXYData( &dps, spec->getOperationFlag( ) );
186
187  double tmpMinX = dps.getMinX( );
188  double tmpMaxX = dps.getMaxX( );
189  double tmpMinY = dps.getMinY( );
190  double tmpMaxY = dps.getMaxY( );
191
192  m_dMinX.push_back( tmpMinX );
193  m_dMaxX.push_back( tmpMaxX );
194  m_dMinY.push_back( tmpMinY );
195  m_dMaxY.push_back( tmpMaxY );
196  }
197  for( unsigned int i = 0; i < m_spectra.size(); i++ ) {
198  double tmpMinX = m_dMinX[ i ];
199  double tmpMaxX = m_dMaxX[ i ];
200  double tmpMinY = m_dMinY[ i ];
201  double tmpMaxY = m_dMaxY[ i ];
202
203  if( i == 0 || tmpMinX < minMz ) {
204  minMz = tmpMinX;
205  }
206  if( i == 0 || tmpMaxX > maxMz ) {
207  maxMz = tmpMaxX;
208  }
209  //
210  if( i == 0 || tmpMinY < minInt ) {
211  minInt = tmpMinY;
212  }
213  if( i == 0 || tmpMaxY > maxInt ) {
214  maxInt = tmpMaxY;
215  }
216  }
217
218  // index
219  const double spacing = 0.2;
220  const int startIdx = std::max( 0, roundnum( minMz / spacing ) );
221  const int endIdx = std::max( 0, roundnum( maxMz / spacing ) );
222
223  // length
224  const int len = endIdx - startIdx + 1;
225  if( len <= 0 ) {
226  return;
227  }
228
229  // array
230 // static bool *flags = NULL;
231 // static double *ints = NULL;
232
233  static int nPrevStartIdx = 0;
234  static int nPrevEndIdx = 0;
235  static double dPrevMinMz = 0.0;
236  static double dPrevMaxMz = 0.0;
237  if ( 0 == m_nAllocLen )
238  {
239  m_bFlags = new bool[ len ];
240  m_dInts = new double[ len ];
241  for ( int i = 0 ; i < len ; i++ )
242  {
243  m_bFlags[ i ] = false;
244  m_dInts[ i ] = 0.0;
245  }
246  m_nAllocLen = len;
247
248  nPrevStartIdx = startIdx;
249  nPrevEndIdx = endIdx;
250  dPrevMinMz = minMz;
251  dPrevMaxMz = maxMz;
252  }
253  else if ( m_nAllocLen < len )
254  {
255  bool *bFlags = new bool[ len ];
256  double *dInts = new double[ len ];
257
258  int nStoreMin = roundnum( dPrevMinMz / spacing );
259  nStoreMin = CLAMP( nStoreMin, startIdx, endIdx ) - startIdx;
260  for ( int i = 0 ; i < len ; i++ )
261  {
262  if ( i >= nStoreMin && i < ( nStoreMin + m_nAllocLen ) )
263  {
264  bFlags[i] = m_bFlags[i-nStoreMin];
265  dInts[i] = m_dInts[i-nStoreMin];
266  }
267  else
268  {
269  bFlags[ i ] = false;
270  dInts[ i ] = 0.0;
271  }
272  }
273  delete[] m_dInts;
274  delete[] m_bFlags;
275
276  m_dInts = dInts;
277  m_bFlags = bFlags;
278  m_nAllocLen = len;
279  dPrevMinMz = minMz;
280  dPrevMaxMz = maxMz;
281  }
282
283
284
285  // fill array
286 //
287 // 全スペクトラムの最大Intensityのデータを抽出しているようです
288 // 拡大したときに範囲内の最大値を求めるのに使用しています
289 //
290
291  kome::objects::Spectrum* spec = m_spectra[ m_spectra.size( ) - 1 ];
292  // get data points
293  kome::core::DataPoints dps;
294  spec->getXYData( &dps, spec->getOperationFlag() );
295
296  for ( unsigned int j = 0 ; j < dps.getLength( ) ; j++ )
297  {
298  const double x = dps.getX( j );
299  const double y = dps.getY( j );
300
301  if ( ( minX < 0.0 || x >= minX ) && ( maxX < 0.0 || x <= maxX ) )
302  {
303  int idx = roundnum( x / spacing );
304  idx = CLAMP( idx, startIdx, endIdx ) - startIdx;
305
306  m_bFlags[ idx ] = true;
307  if ( fabs( y ) > fabs( m_dInts[ idx ] ) )
308  {
309  m_dInts[ idx ] = y;
310  }
311  }
312  }
313  // add array
314  for( int i = 0; i < len; i++ ) {
315  if( m_bFlags[ i ] ) {
316  double x = spacing * ( i + startIdx );
317  double y = m_dInts[ i ];
318
319  xyData->addPoint( x, y );
320  }
321  }
322 }
kome::core::DataPoints
data points data of profile management class
Definition: DataPoints.h:25
kome::core::XYData::getMaxX
double getMaxX()
gets maximum x
Definition: XYData.cpp:119
kome::core::XYData::getX
double getX(const unsigned int index)
gets x coordinate
Definition: XYData.cpp:224
kome::core::XYData::getMinY
double getMinY()
gets minimum y
Definition: XYData.cpp:125
kome::core::XYData::getY
double getY(const unsigned int index)
gets y coordinate
Definition: XYData.cpp:243
roundnum
int roundnum(const double v)
gets the closest integer to the argument
Definition: TypeFunctions.cpp:20
kome::core::XYData::getMinX
double getMinX()
gets minimum x
Definition: XYData.cpp:113
kome::objects::Spectrum::getXYData
kome::core::XYData * getXYData()
gets xy data from data manager
Definition: Spectrum.cpp:279
CLAMP
#define CLAMP(x, low, high)
Definition: CoreMacros.h:35
kome::objects::OverlappingSpectrum::m_spectra
std::vector< Spectrum * > m_spectra
Definition: OverlappingSpectrum.h:42
kome::objects::Spectrum
spectrum information management class
Definition: Spectrum.h:30
kome::core::XYData::addPoint
void addPoint(const double x, const double y)
adds point
Definition: XYData.cpp:149
kome::core::XYData::getMaxY
double getMaxY()
gets maximum y
Definition: XYData.cpp:131
kome::objects::Spectrum::getOperationFlag
bool getOperationFlag()
gets the operation flag value
Definition: Spectrum.h:202
kome::core::XYData::getLength
unsigned int getLength()
gets the number of points @return the number of points
Definition: XYData.cpp:216

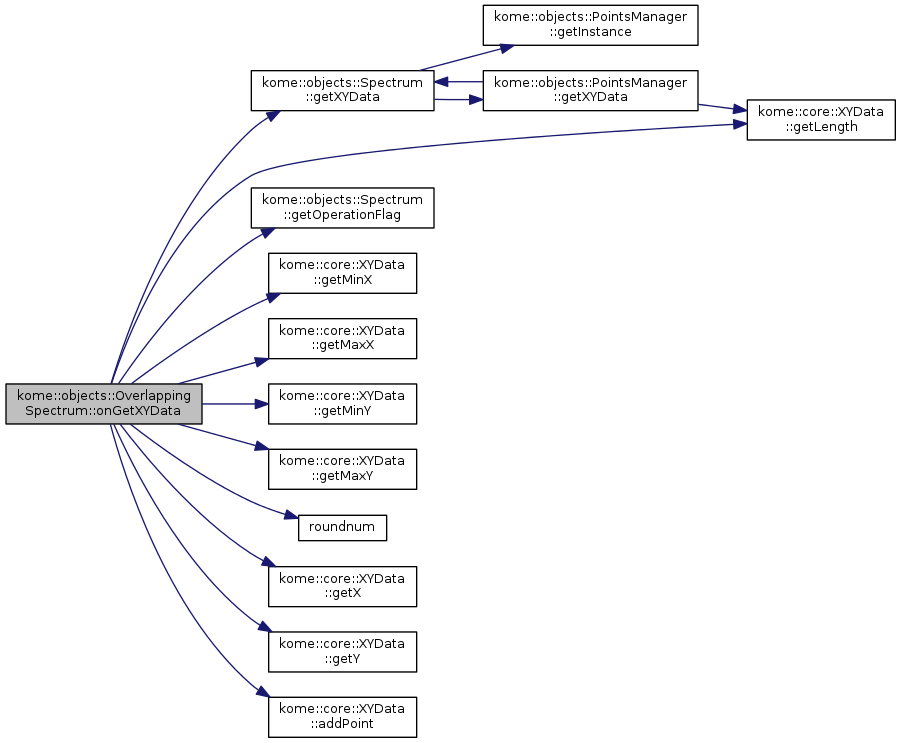

Here is the call graph for this function:

void kome::objects::OverlappingSpectrum::removeSpectrum ( Spectrum *  spec)

removes spectrum

Parameters
[in]specspectrum object to be removed

Definition at line 89 of file OverlappingSpectrum.cpp.

89  {
90  // search
91  int idx = searchSpectrum( spec );
92  if( idx < 0 ) {
93  return;
94  }
95
96  // remove
97  m_spectra.erase( m_spectra.begin() + idx );
98
99  // set group
100  if( m_spectra.size() == 1 ) {
101  setGroup( m_spectra[ 0 ]->getGroup() );
102  }
103  else {
104  setGroup( NULL );
105  }
106
107  // update range
108  double minX = double();
109  double maxX = double();
110
111  onGetXRange( &minX, &maxX );
112  setXRange( minX, maxX );
113 }
kome::objects::OverlappingSpectrum::onGetXRange
virtual void onGetXRange(double *minX, double *maxX)
This method is called by getMinX or getMaxX method. (override method)
Definition: OverlappingSpectrum.cpp:325
NULL
#define NULL
Definition: CoreMacros.h:18
kome::objects::Spectrum::getGroup
DataGroupNode * getGroup()
gets spectrum group
Definition: Spectrum.cpp:898
kome::objects::OverlappingSpectrum::m_spectra
std::vector< Spectrum * > m_spectra
Definition: OverlappingSpectrum.h:42
kome::objects::OverlappingSpectrum::searchSpectrum
int searchSpectrum(Spectrum *spec)
searches spectrum
Definition: OverlappingSpectrum.cpp:145
kome::objects::Spectrum::setGroup
void setGroup(DataGroupNode *group)
sets spectrum group
Definition: Spectrum.cpp:893
kome::objects::Spectrum::setXRange
void setXRange(const double minX, const double maxX)
sets x range
Definition: Spectrum.cpp:443

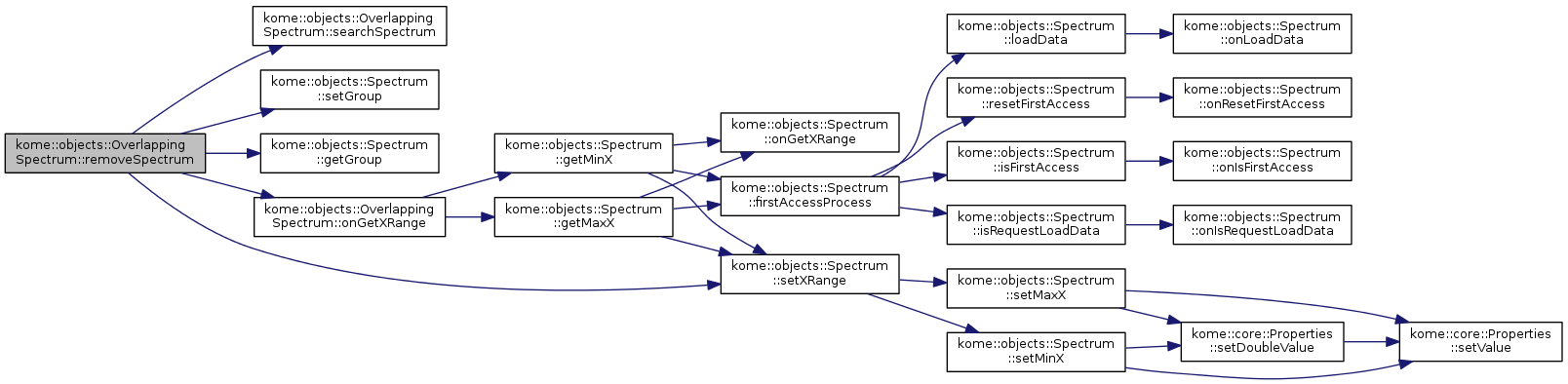

Here is the call graph for this function:

int kome::objects::OverlappingSpectrum::searchSpectrum ( Spectrum *  spec)
protected

searches spectrum

Parameters
[in]specspectrum object to be searched
Returns
spectrum index (If negative value, specified spectrum is not found.)

Definition at line 145 of file OverlappingSpectrum.cpp.

145  {
146  // search
147  for( int i = 0; i < (int)m_spectra.size(); i++ ) {
148  if( spec == m_spectra[ i ] ) {
149  return i;
150  }
151  }
152  return -1;
153 }
kome::objects::OverlappingSpectrum::m_spectra
std::vector< Spectrum * > m_spectra
Definition: OverlappingSpectrum.h:42

Member Data Documentation

std::vector< double > kome::objects::OverlappingSpectrum::m_dMaxX
protected

maximum value of Y

Definition at line 47 of file OverlappingSpectrum.h.

std::vector< double > kome::objects::OverlappingSpectrum::m_dMaxY
protected

maximum value of Y

Definition at line 51 of file OverlappingSpectrum.h.

std::vector< double > kome::objects::OverlappingSpectrum::m_dMinX
protected

minimum value of X

Definition at line 45 of file OverlappingSpectrum.h.

std::vector< double > kome::objects::OverlappingSpectrum::m_dMinY
protected

minimum value of Y

Definition at line 49 of file OverlappingSpectrum.h.

std::vector< Spectrum* > kome::objects::OverlappingSpectrum::m_spectra
protected

spectra

Definition at line 42 of file OverlappingSpectrum.h.

The documentation for this class was generated from the following files:
Generated on Sun Mar 18 2018 12:32:10 for Mass++ Common Libraries v2.7.5 by   doxygen 1.8.6
